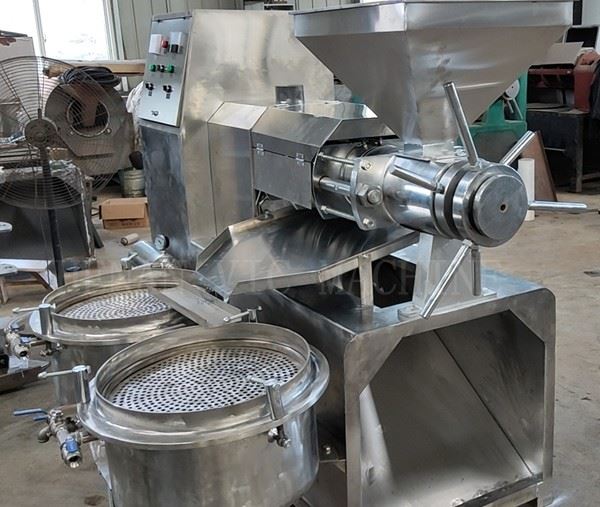

Máquina de prensa de aceite de acero inoxidable combinada de filtrado automático

Máquina de prensa de aceite de acero inoxidable combinada de filtrado automático

1.Integrated with oil pressing and oil filtering with automatic.2.It can auto control the raw materials pressing temperature3.Choose vacuum filter which is more efficient in filtering crude oil4.There's heating pipe on the pressing chamber, this can help the pressing chamber rise to fixed temperature in short time.5.The main parts are by heat treatment with very compact structure and strong wear resistance.6.All body is made of 304 stainless steel,the machine looks more beautiful and cleaner
Envíeconsulta
Chatee ahora
Descripción
Parámetros técnicos

1. Aplicación:
It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame,teaseeds,  sunflowerseeds, olive, palm kernal etc, it's a perfect product for small-medium oil factory. This integrated oil press is with nice shape, highly structured, easy installation, high degree of automation, fast warn-up, and high oil output rate with pure scent.

2. Ventaja de la máquina de prensa de aceite combinada:

  1. Integrado con prensado de aceite y filtrado de aceite con automático.

  2. Puede controlar automáticamente la temperatura de prensado de las materias primas.

  3. Elija un filtro de vacío que sea más eficiente para filtrar petróleo crudo

  4. There's heating pipe on the pressing chamber, this can help the pressing chamber rise to fixed temperature in short time.

  5. Las partes principales son por tratamiento térmico con estructura muy compacta y fuerte resistencia al desgaste.

  6. All body is made of 304 stainless steel,la máquina se ve más hermosa y limpia

3. Datos principales:

Modelo6YL-80S6YL-100S6YL-120S
Capacidad de procesamiento120-150 kg/hora200-250 kg/hora300-350 kg/hora
Diámetro del tornillo de presiónΦ80mmΦ100mmΦ120mm
Velocidad del tornillo de presión60r/min40r/min36r/min
Diámetro del anillo redondoΦ82mmΦ102mmΦ122mm
EnergíaPoder principalY112M-6 5.5KWY132M-6 7.5KWY160M-6 11KW
Calefacción3KW3.5KW4KW
Peso780kg980kg1500kg
Tamaño1680x1300x1550mm1950x1350x1610mm2050x1550x1800mm

Más fotos y detalles

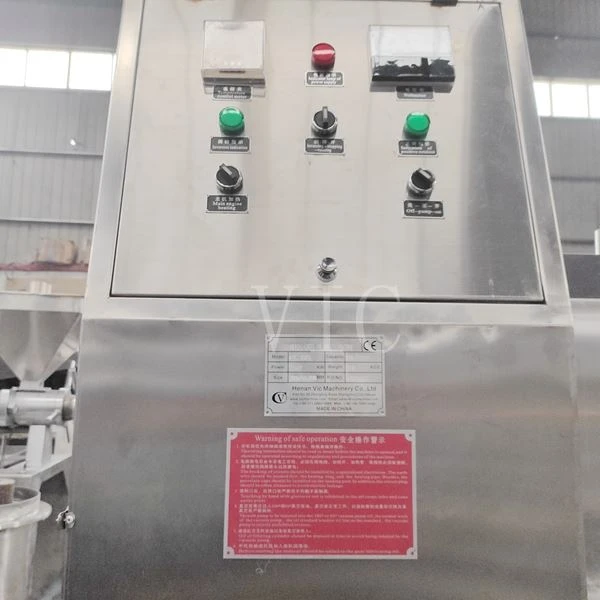

Sistema de control

oil Press control sysytem

caja de cambios

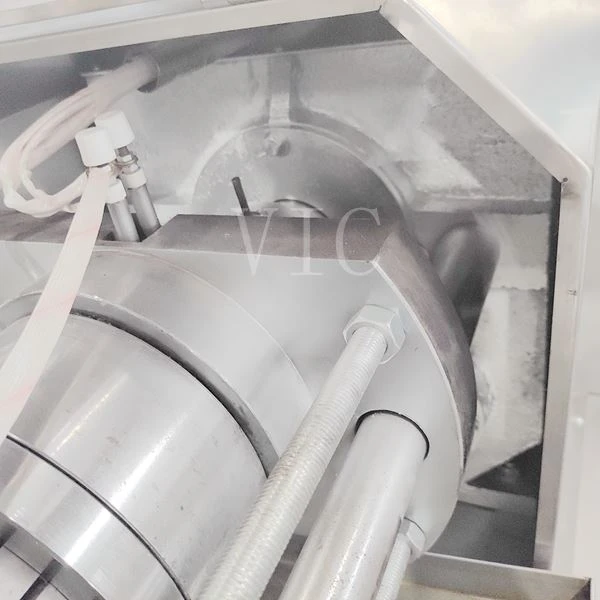

CONTROL BOX

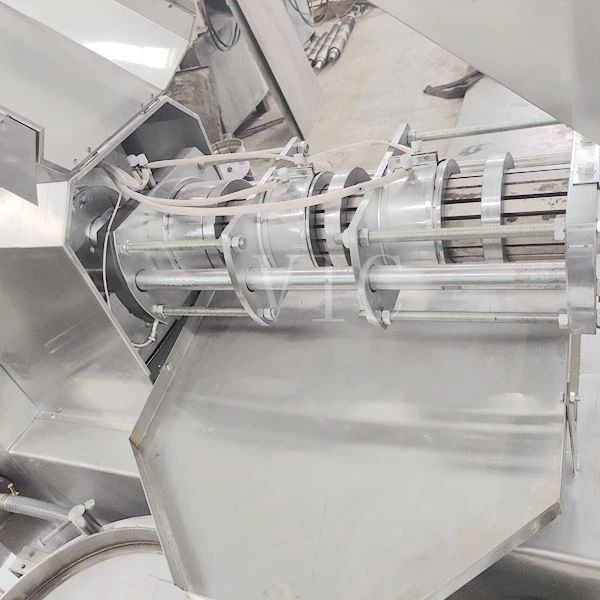

Eje de prensa y unidad de calentamiento

OIL PRESS SCREW
